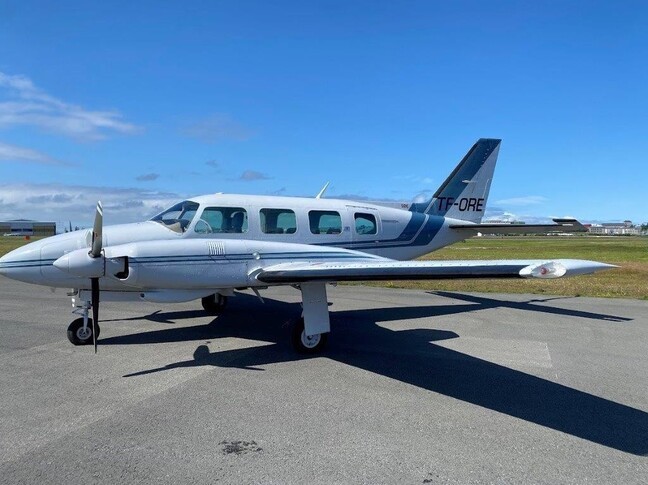

1977 Piper Navajo for sale, Iceland
1/6
Price: USD $275,000 No VAT
Europe, Iceland
Year
1977
S/N
31-7712096
Reg
TF-ORE
TT
4915
Aircraft Description
This is the Navajo with the 325HP contra rotating engines
Six forward facing rear passenger seats
Propellers away at this time for fresh overhaul
Based at Reykjavik Airport in Iceland where hangar facilities will be made available for viewing and inspection
Offers will be considered
See spec sheet for full details
No VAT on the sale from Iceland but you will need to pay Import VAT in your country
AIRFRAME / TOTAL LANDINGS / ENGINES / APU / WEIGHT
AIRFRAME
TTAF 4915 HrsDeiced
A WORD ABOUT THE DEICING:
The aircraft is deiced. All Boots in working order; three patches on right hand wing boot.
Left wing boot approx 130 hrs since installed.
Elevator: RH 130 Hrs. LH good working two patches.
Fin boot in good condition no patches.
(LH Windshield electrical heated needs to be tested to check its working condition, so condition not known for now.)
ENGINES
130 Hrs SOH in 20142x 325HP Lycoming C/R TIO-540-F2BD
TBO 1800 Hours/12 Years
Engines last O/H Oct/2014
Engine S/Nos: RL-4372-61A & L-1555-68A
A WORD ABOUT THE ENGINES:
Low time since last overhaul.
Engine data management system installed in 2015.
Fitted with intercoolers
PROPELLERS
130 Hrs SPOH in 2014, however, as they are calendar expired the props are now away for fresh overhaul
Hartzell HC-E3YR-2A 3-blade propellers
Prop SNos: DJ10283A & DJ 10292A
A WORD ABOUT THE PROPELLERS:
Low time since last overhaul but are now due fresh overhaul on calendar time and have been sent to Brinkley's in England for overhaul and should be back on the airframe soon, so the aircraft will be sold with freshly overhauled props.
WEIGHTS
Increased gross weight as it has VGsMTOW 6840 Lbs/2950 Kgs
Max Landing 6500 Lbs
MZFW 6200 Lbs
Basic Empty Weight 2200 Lbs
- Maintenance & InspectionsThe aircraft is in the process of being returned to service which will include overhauled propellers, a fresh Annual Inspection and fresh ARC.
- AVIONICS & CONNECTIVITYDual Garmin GNS430 [non-WAAS]
King KR87 ADF
HSI and also a No2 GS
King KN62A DME
Garmin GTX330 Mode S Transponder
Altimatic IIIC Autopilot
JPI EDM760 Engine Monitor
Garmin GMA340 Audio Panel
Kannad 406 ELT [new battery required on alendar life]
A WORD ABOUT THE AVIONICS:
The avionics were upgraded in 2015.
Engine data management system installed in 2015. - Interior & EntertainmentSix forward facing rear cabin seats in Blue
- EXTERIOROverall Whisper Grey with Blue and Medium Grey stripes. Full strip, alodined, primed and resprayed in 1989 in USA.
Cargo door - Additional Equipment & InformationFull P2 panel
P1 panel mounted chronometerREMARKS
The aircraft is the personal steed of the owner of an Iceland based charter operator who uses it for his own purposes, although it has not flown for a few years and is currently being returned to service.
It can be bought "asis" [with the overhauled propeller] or fully returned to service.
